Monocrystalline Solar Panels -200W - 300W

precio al por menor
0.0
Precio de mercado
0.0
Visitas:
1004
Código de producto
Categoría
Paneles Solares
Cantidad
-
+
Inventario:
APLICACIÓN:
CARACTERÍSTICAS:
VENTAJAS:
ACCESORIOS GRATUITOS:
1

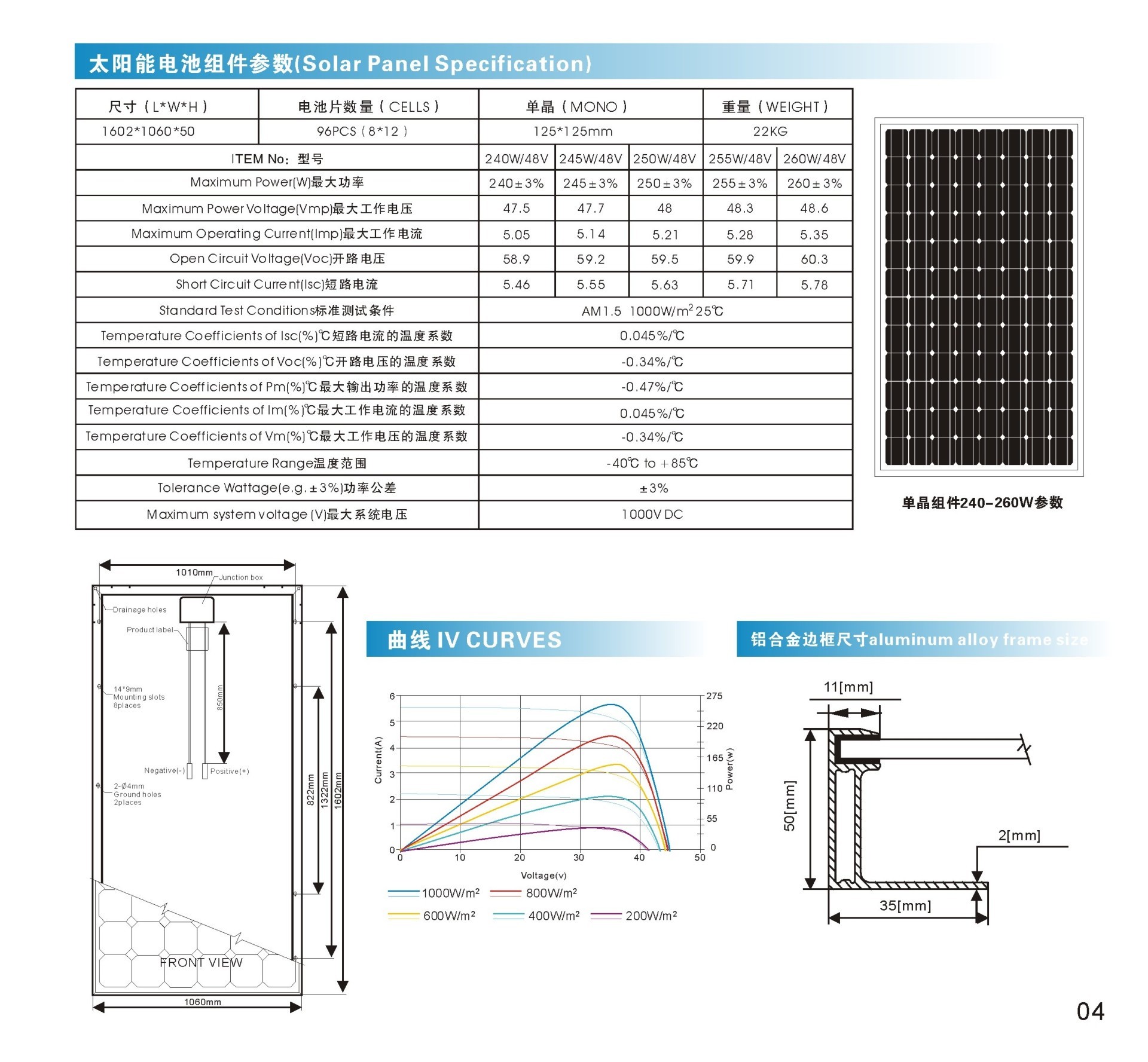

Specification
Parámetro
Performance Curve
FAQ
Peak power
Pma (W)		 Max.power Voltage Vm (V) Max.power
current Im (A)		 Open-circuit
Voltage Voc (V)		 Short-circuit current Isc (A) Dimensions
(mm)		 No. of Cells Shaped Solar Cell (mm) Weight (KG)
10 17.5 0.61 21.3 0.68 330*300*17 36 31.25*62.5 1.2
15 17.1 0.88 21.5 0.97 420*340*17 36 78*39 1.9
20 17.5 1.14 22 1.19 630*330*17 36 62.5*62.5 2.2
25 18.2 1.37 22.4 1.51 550*360*25 36 78*52 2.4
30 17.8 1.69 22.2 1.86 445*550*30 36 125*41.67 3
40 18.4 2.18 22.6 2.39 425*665*30 36 156*39 3.5
45 17.8 2.53 22.2 2.78 632*550*30 36 125*62.5 4
45* 18.2 2.48 22.4 2.72 500*665*30 36 156*48 4
50 18.2 2.75 22.4 3.03 537*665*30 36 156*52 4.5
55 18.2 3.02 22.4 3.33 600*665*30 36 156*58.5 5
60 17.8 3.37 22.2 3.71 840*550*30 72 125*41.67 6
80 18.4 4.35 22.6 4.79 770*665*30 36 156*78 6.2
90 17.8 5.06 22.2 5.57 1195*550*30 36 125*125 8
105 18.4 5.71 22.6 5.71 1030*665*30 72 156*52 8
115 18.4 6.25 22.6 6.88 1150*674*30 36 156*117 9
160 18.4 8.7 22.6 9.57 1474*674*35 36 156*156 12
180 35.8 5.03 44.8 5.49 1580*808*35 72 125*125 15
230 27.6 8.34 33.9 9.17 1482*992*50 54 156*156 17.5
250 30.7 8.15 37.7 8.96 1650*992*50 60 156*156 20
300 35.6 8.43 44.8 9.27 1956*992*50 72 156*156 23
310 34.84 8.89 43.2 9.43 2250*992*50 86 156*156 22
320 35.2 9.09 44.6 9.63 2250*992*50 86 156*156 23
330 35.4 9.32 44.7 9.87 2250*992*50 86 156*156 25
340 35.4 9.32 44.7 9.87 2250*992*50 86 156*156 26
350 36.1 9.70  43.2 10.28  2250*992*50 86 156*156 27
360 36.2 9.94  44.6 10.54  2250*992*50 86 156*156 28
370 36.23 10.21  44.7 10.83  2250*992*50 86 156*156 28
380 36.3 10.47  44.7 11.10  2250*992*50 86 156*156 28
Operating Module Temperature -40 °C to +85 °C
Maximum System Voltage 1000 V DC (IEC) / 600 V DC (UL)
Maximum Series Fuse Rating 20 A ;Power Tolerance 0/+3 %



No se encontró el grupo de parámetros correspondiente. Agréguelo en la plantilla de propiedades de fondo.

11

1. What the M.O.Q ?
Re : Min Order Quantity is 100pcs with Same Specification.

2. What Advantages does Rison Have? Or Why should I Choose Rison?
Re: Rison Product Top Quality Material and Efficiency is Higher than Other Similar Product in the Market. Please contact Rison for more advanced technical Information.

3. Rison can Design the Special size or Specification Solar Panels?
Re : Yes, Rison can Design the Special technical parameters and unique size according to your requirement.

4. Rison Produces All the other Accessories?
Re : Rison Produce Directly for all the Product in Rison Website.

5. Can we do the OEM?
Re : Yes, we can do OEM for all of our production.

6. How Can I get Quotation?
Re : Please Click the above “INQUIRY” and inform us the pump model name and all the other technical requirement you have. Or you can contact us directly for more details.

7. Is it Possible to become Rison Distributor in my Marketing Region?
Re: Yes, Rison Welcome You to Negotiate with the Distribution Issues , if There is no Distributor in Your Marketing Region
